HMD650 DU
Basic Info:
DU Series: 650Ton Two platen Injection Molding Machine
Model: HMD650 DU
Machine Technical Date:
| DESCRIPTION |
Unit |
HMD650 DU |
|||
| International size rating |
4741/650 |
||||
| INJECTION UNIT |
A |
B |
C |
D |
|
| Shot volume |
cm3 |
2210 |
2789 |
3117 |
3808 |
| Shot weight(PS) |
g |
2012 |
2546 |
2836 |
3465 |
|
oz |
70 |
89 |
99.3 |
121.3 |
|
| Injection rate |
cm3/s |
517 |
655 |
731 |
893 |
| Screw diameter |
mm |
80 |
90 |
95 |
105 |
| Injection pressure |
MPa |
215 |
170 |
153 |
125 |
| Screw L:D ratio |
L/D |
24.8 : 1 |
22 : 1 |
21 : 1 |
18.9 : 1 |
| Screw stroke |
mm |
440 |
|||
| Screw speed (stepless) |
r/min |
0 - 180 |
|||
| CLAMPING UNIT | |||||
| Clamping force |
kN |
6500 |
|||
| Opening stroke |
mm |
1400 / 850 |
|||
| Platen size |
mm |
1550 x 1420 |
|||
| Space between tie-bars (HxV) |
mm |
1060 x 930 |
|||
| Max. daylight |
mm |
1800 |
|||
| Mold thickness (Min-Max) |
mm |
400 - 950 |
|||
| Ejector stroke |
mm |
260 |
|||
| Ejector force |
kN |
182 |
|||
| POWER UNIT | |||||
| Hydraulic system pressure |
MPa |
17.5 / 21 |
|||
| Pump motor power |
kW |
62+31+13 |
|||
| Heating capacity |
kW |
50.6 |
|||
| Number of temp control zones |
/ |
6 |
|||
| GENERAL | |||||
| Oil tank capacity |
L |
1000 |
|||
| Machine dimensions (LxWxH) |
m |
9.5 x 2.9 x 2.8 |
|||
| Machine weight |
kg |
35000 |
|||
Processing Equipment:
Certificate:
Our Service:
DU Series Injection unit

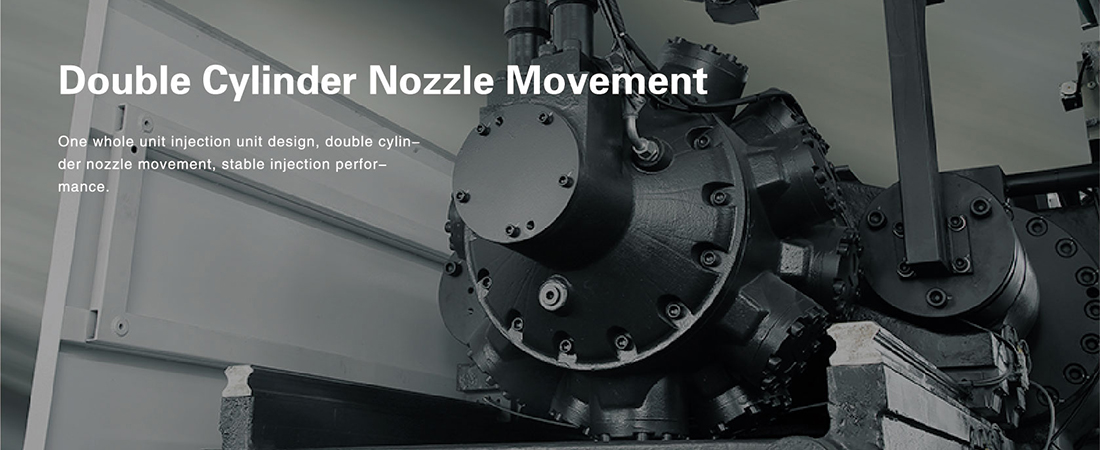

- Adopts the Dual carriage cylinder design structure, ensure injection unit movement in one line, stable injection performance
- Two layers Injection Supporting Device, helps to shorten the length of machine, and get more space saving.
- Modular design
DU Series Clamping unit
- Wide space between tie – bars, long open stroke and ejector stroke

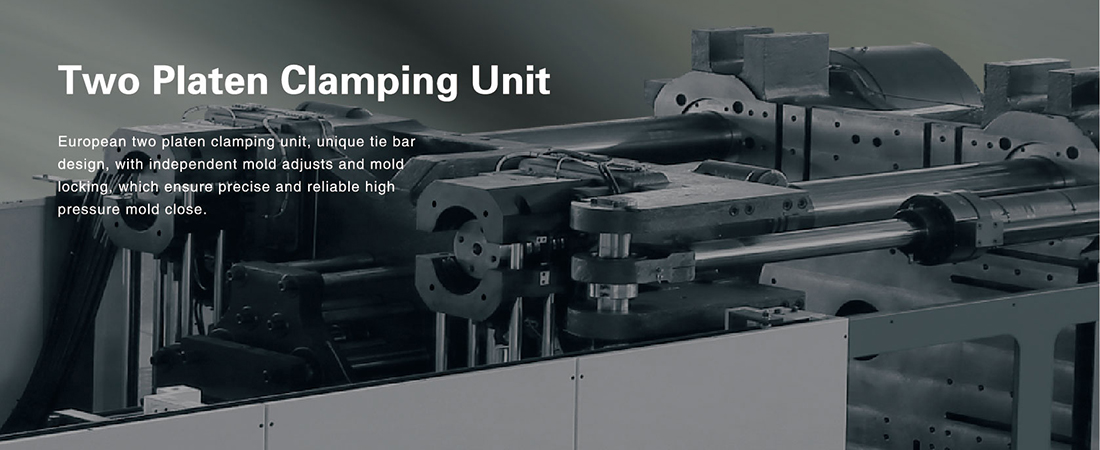

- Two platen system for saving more space
- High – rigidity platen and machine base
- Large moving platen supports
- Low pressure mold protection function
- Four short stroke mold break cylinders for accurate mold height control
DU Series Hydraulic unit

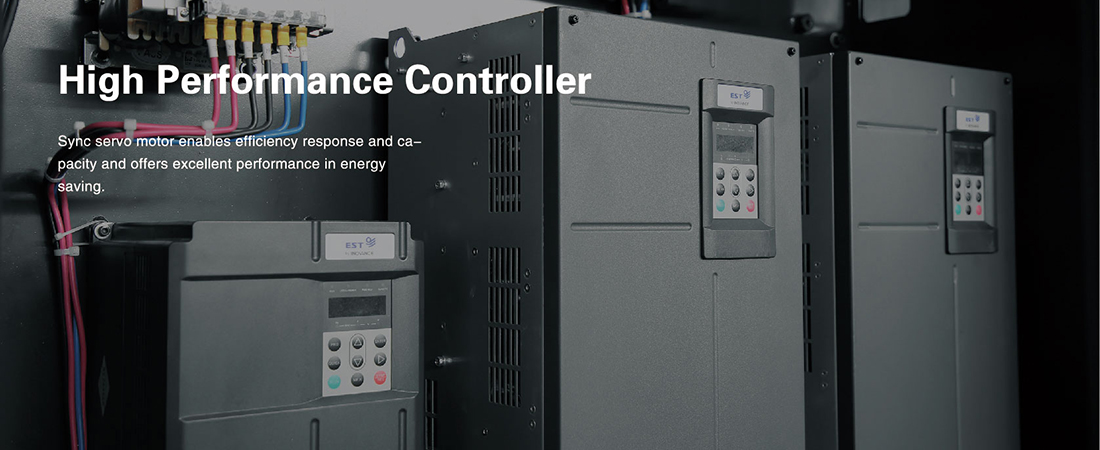

- Sync servo motor enables efficiency response and capacity an offers excellent performance in energy saving.
- Top quality and world famous brands hydraulic parts ensure machine’s reliability and fast response speed
- Equipped with DIN standard cone with sealing ring joint, manifold with G thread sealing gland
- Self-sealed magnetic suction filter
DU Series Electric unit
- World famous brands high quality electric parts
- High safety electric protection
- Standard machines safety right for New Nation Safety Standard
