DP 270

HWAMDA DP SERIES

TURNTABLE TWO COLOR INJECTION MACHINE
More precise & High response

  • Clamping force range: 160T to 850T
  • Power unit: energy saving servo system
  • Modular design injection unit meets to varies precise injection molding needs
  • Double separate set of barrel
  • Quipped with high – performance KEBA controller
  • Warranty : Platen – 5 Years
  • Tie-bars and toggle pins:2 ears


Technical Data

Injection Unit

Clamping Unit

Hydraulic Unit

Electric Unit

Basic Info:
DP Series: 270Ton Two Color Injection Molding Machine
Model:  HMD270DP

Machine Technical Date:

DESCRIPTION

Unit

HMD270DP

INJECTION UNIT

A

B

A

B

Shot volume

cm3

141

178

283

358

Shot weight(PS)

g

128

162

257

326

oz

4.5

5.7

9.1

11.5

Injection rate

cm3/s

83

105

136

172

Screw diameter

mm

32

36

40

45

Injection pressure

Bar

2066

1633

1960

1549

Screw L:D ratio

L/D

20:1

20:1

20:1

20:1

Plasticizing capacity

g/s

11

13

21

29

Injection Speed

mm/s

103

103

103

103

Max. screw speed

r/min

221

221

250

250

CLAMPING UNIT
Clamping force

kN

2700

Opening stroke

mm

460

Space between tie-bars (HxV)

mm

920 x 570

Mold thickness (Min-Max)

mm

200-600

Rotary Table Diameter

mm

1050

Ejector stroke

mm

140

Ejector force

kN

45x2

Number of ejector

Pcs

3x2

Distance barrel centers

mm

500

POWER UNIT
Hydraulic system pressure

MPa

160

Pump motor power

kW

12/18.2

Heating capacity

kW

6.8/12.3

Number of temp control zones

/

2x4

GENERAL
Oil tank capacity

L

460

Machine dimensions (LxWxH)

m

6.0x2.05x2.3

Machine weight

kg

12100

Hopper capacity

kg

25

Processing Equipment:

8-1

13

12

9

Certificate:

16

17

15

 Our Service:

18


  • Previous:
  • Next:

  • DP Series Injection unit

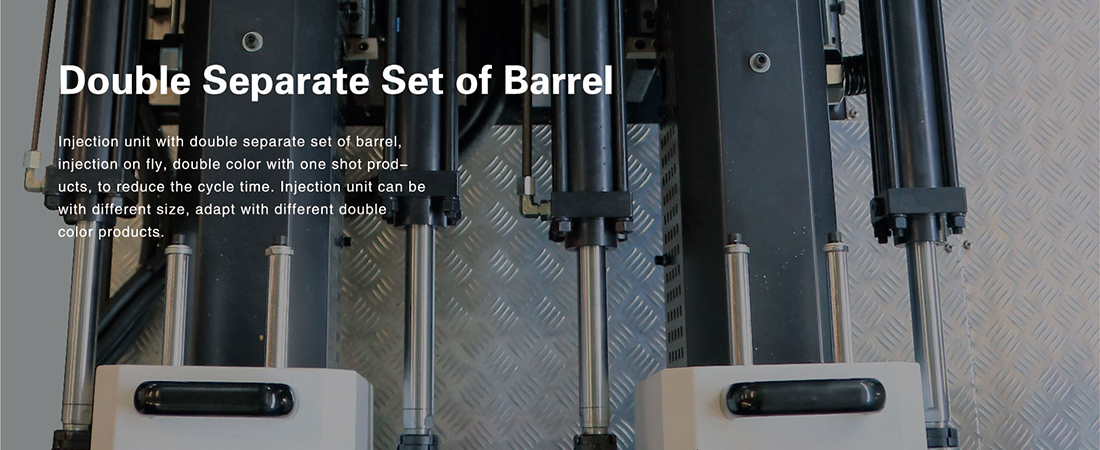

    • Double separate set of barrel, double color with one shot products, to reduce the cycle time
    • Barrel with PID temperature control
    • It can be with different size, adapt with different double color products
    • Single cylinder of injection structure, more precise for injection
    • Double precise linear guard, Precise and fast speed starter
    DP Series Clamping unit
    • Moveable platen with 180°turntable, can place 2 molds, to produce 2 color products

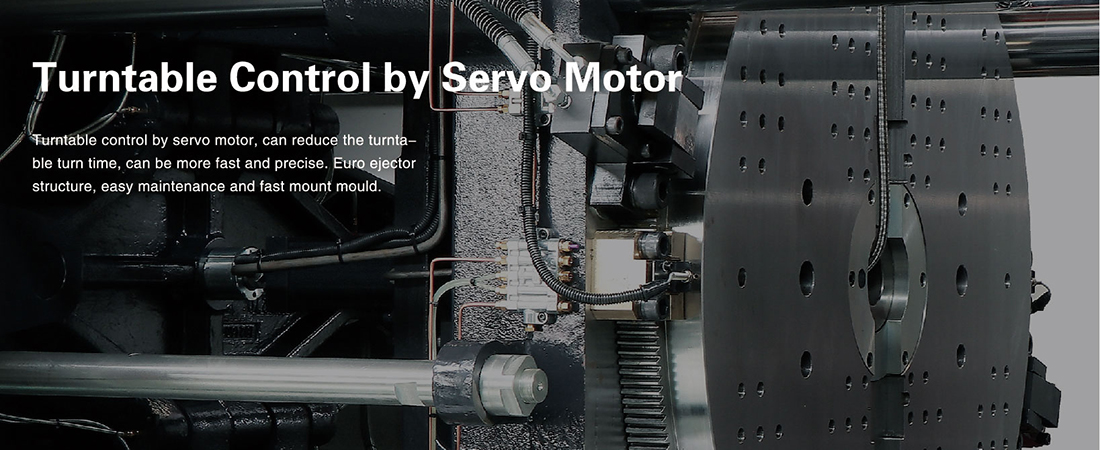

    • Turntable control by servo motor, can reduce the turntable turn time, can be more fast and precise
    • New design clamping unit provide stable and fast performance. upgrade mechanic intensity of whole structure, rigidity and fatigue are enhanced
    DP Series Hydraulic unit

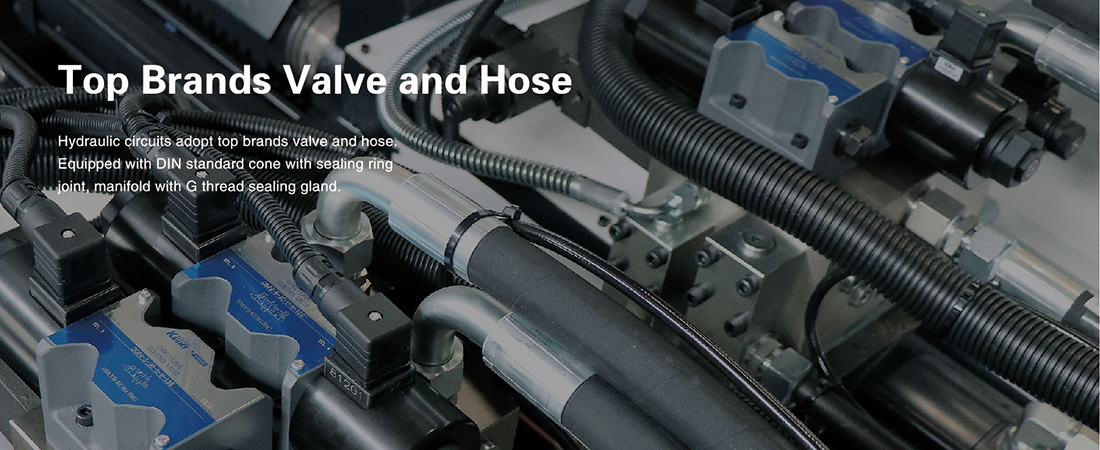

    • Hydraulic circuits adopt top brands valve and hose
    • Equipped with DIN standard cone with sealing ring joint, manifold with G thread sealing gland
    • Seal-sealing magnetic oil filter, convenient to maintenance
    DP Series Electric unit

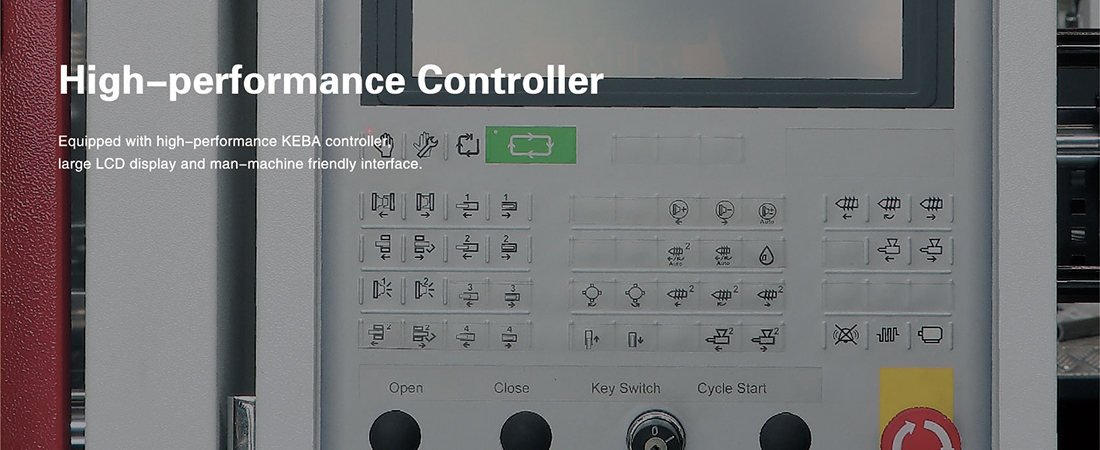

    • Equipped with High – performance KEBA controller, large LCD display and man – machine friendly interface.
    • Equipped with three light alarm with buzzer
